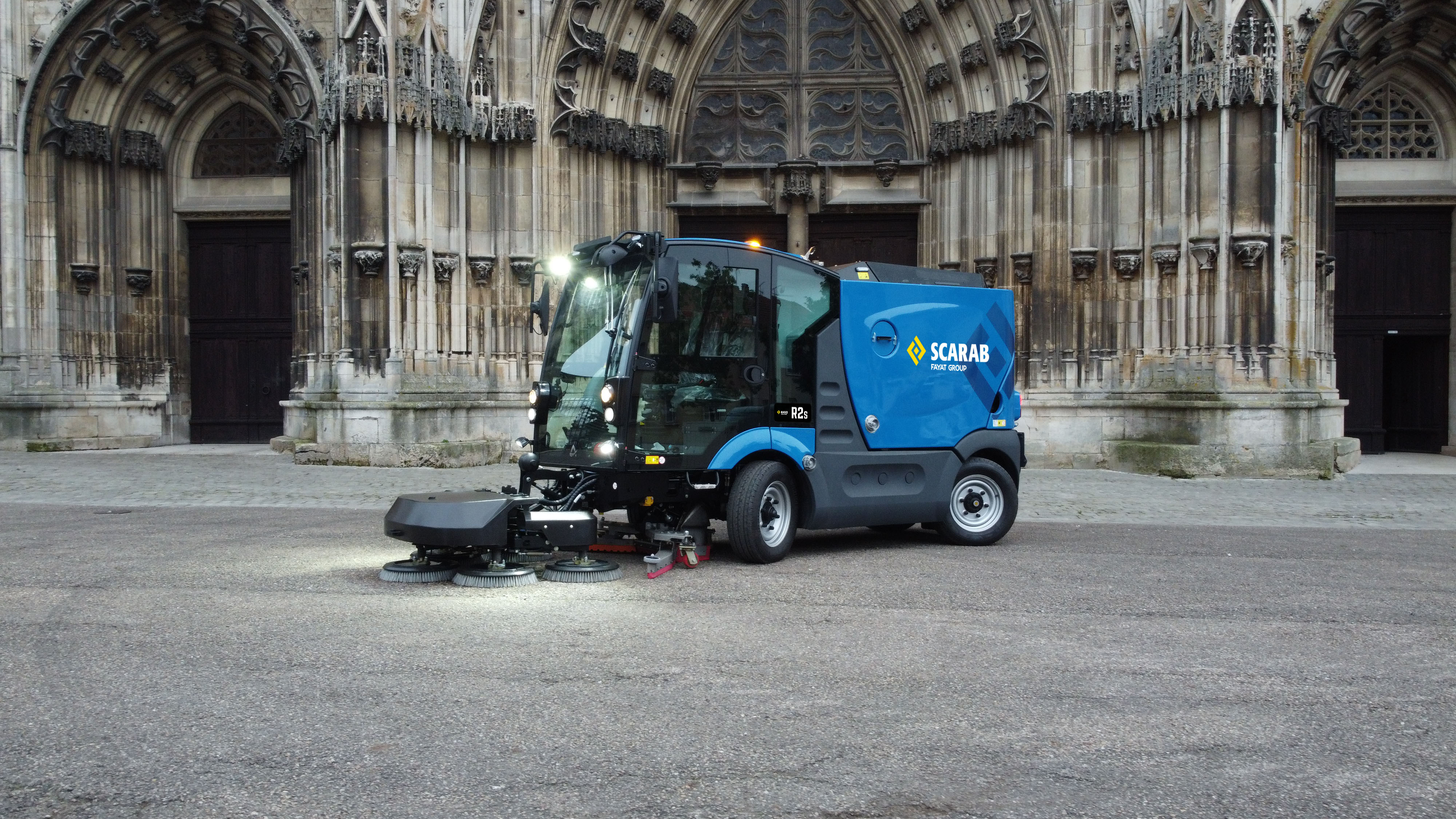

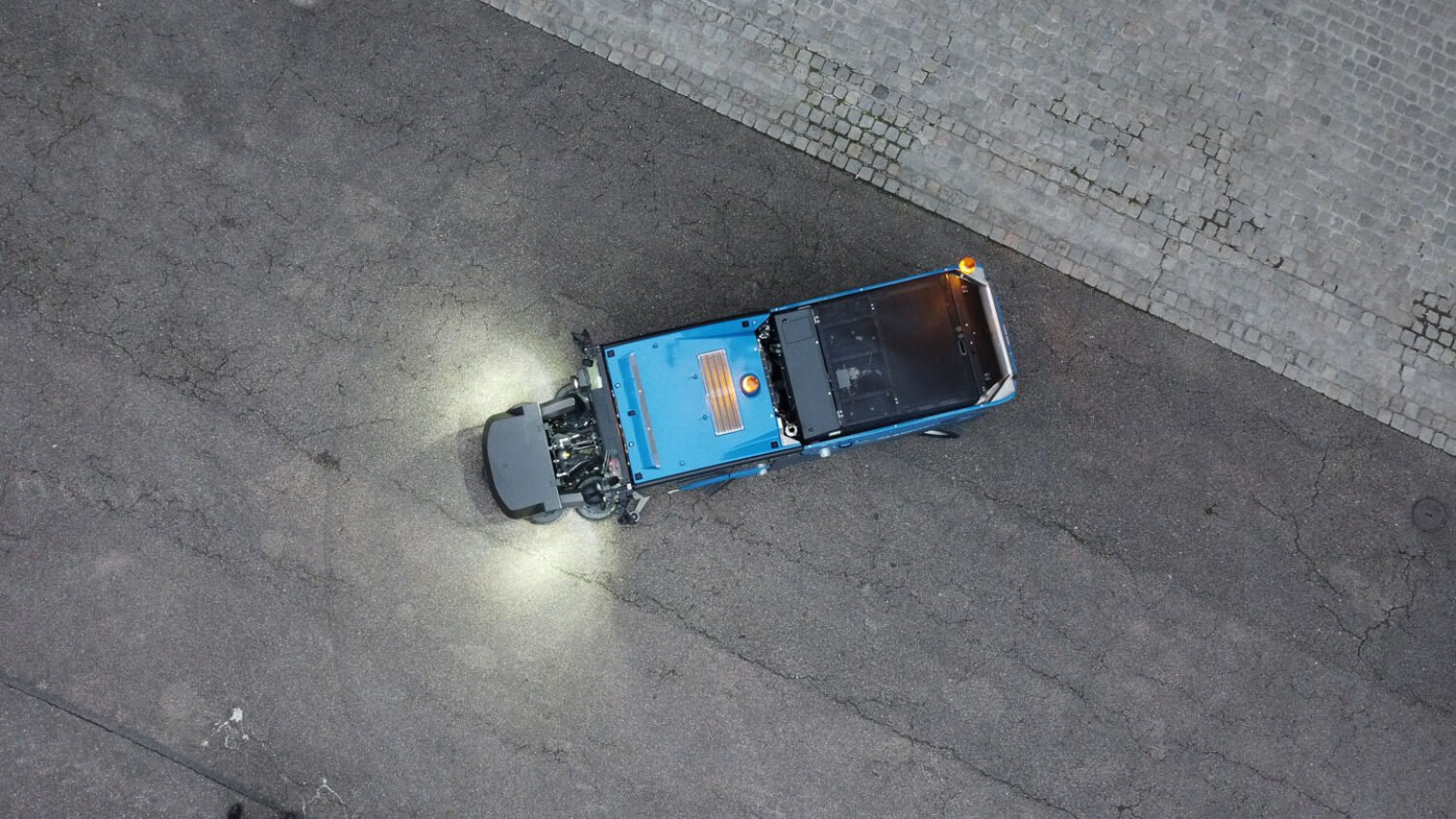

RAVO R2s

Dedicated Street Washing for All Environments

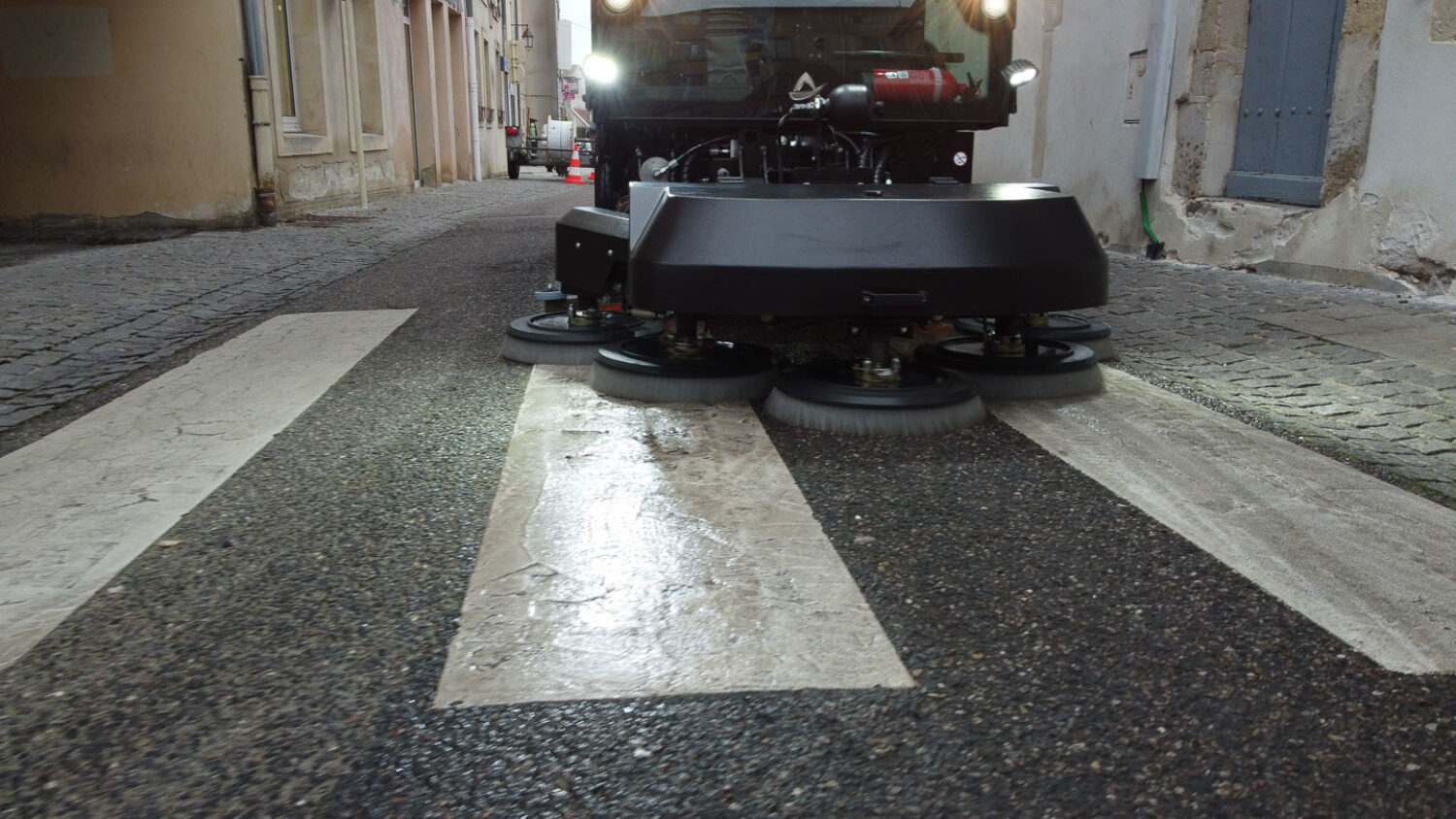

The quiet R2s has been created to provide a high-efficiency total surface cleaning solution whilst still respecting the environment within which it works. The R2s cleaning system simultaneously achieves wetting, soaping, scrubbing, recovery and recycling of the waste water - all these actions combined into one machine ensure that the R2s are unrivalled in ability. This environmentally-focused washing technology is capable of treating all types of surfaces using its non-aggressive process and its low noise and exhaust emissions ensure it is a truly 'clean machine'.

MAIN FEATURES:

  • Shampoo & Soaking: The degreasing water, mixture with the action of the brushes, enables an efficient washing stripping. Distributed at low pressure (3 bar) on the brushes, the liquid removes the encrusted substances.
  • Degreasing Container: With a capacity of 20 litres, it provides the user with a comfortable operating period. Although active, the degreaser agent is 100% biodegradable.
  • Used Water Recycling System: The R2s has its own onboard suction and storage system for the dirty water. With a clean water capacity of 1000 litres, the operating autonomy of the R2s is exceptional.

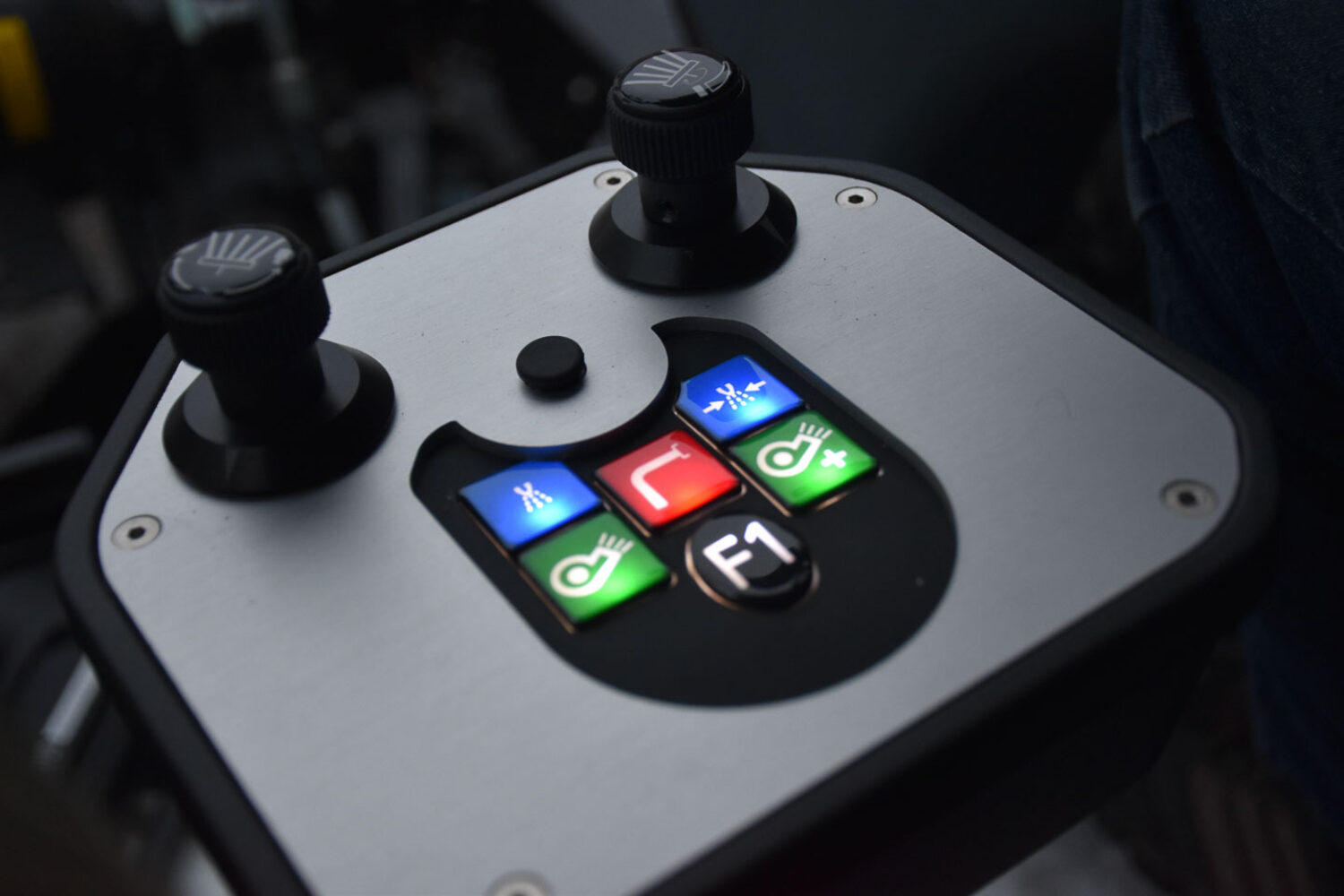

  • Venturi System: Connected to the clean water delivery line, the venturi system allows the in-cab dosing of the degreaser flow according to the ground conditions.

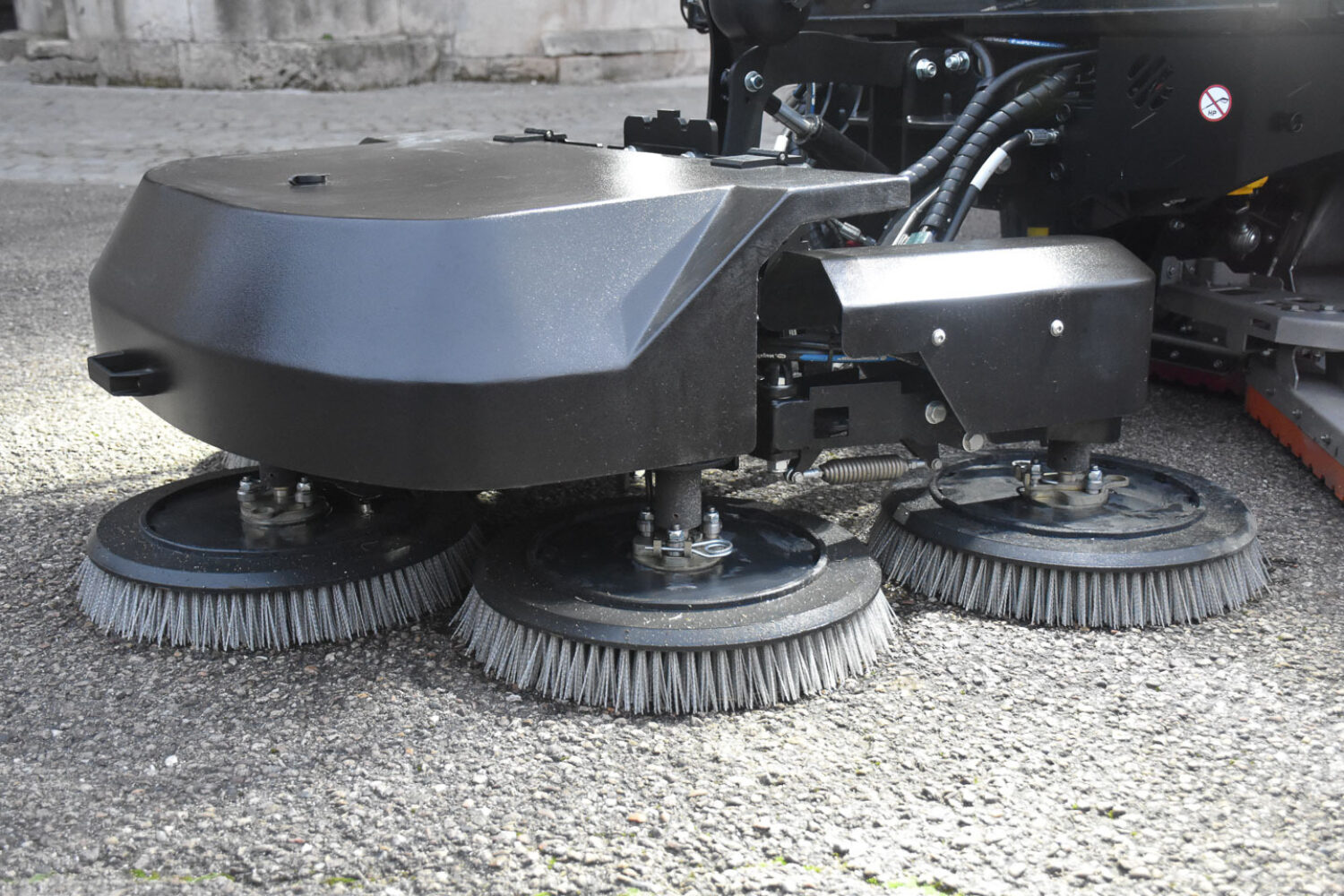

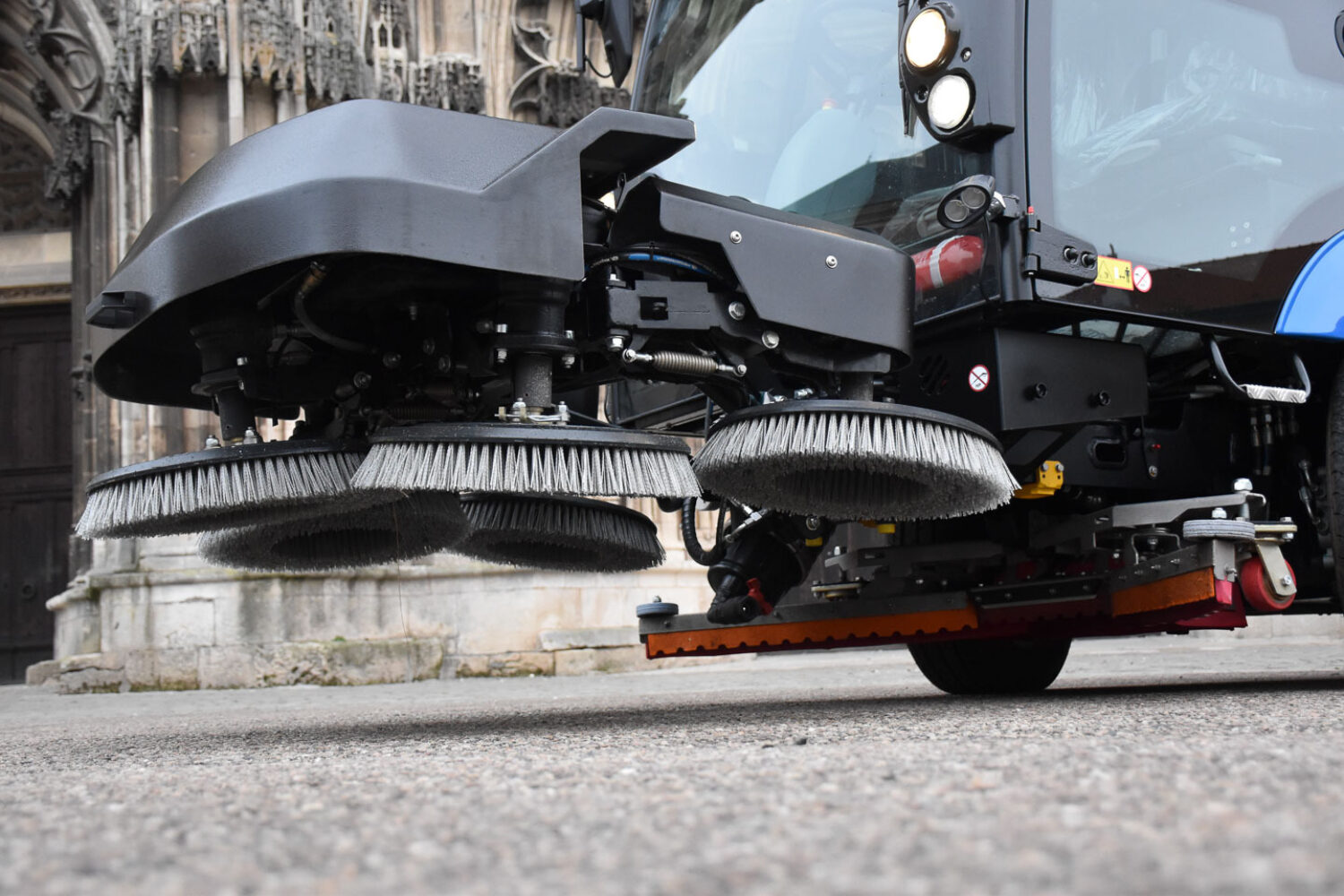

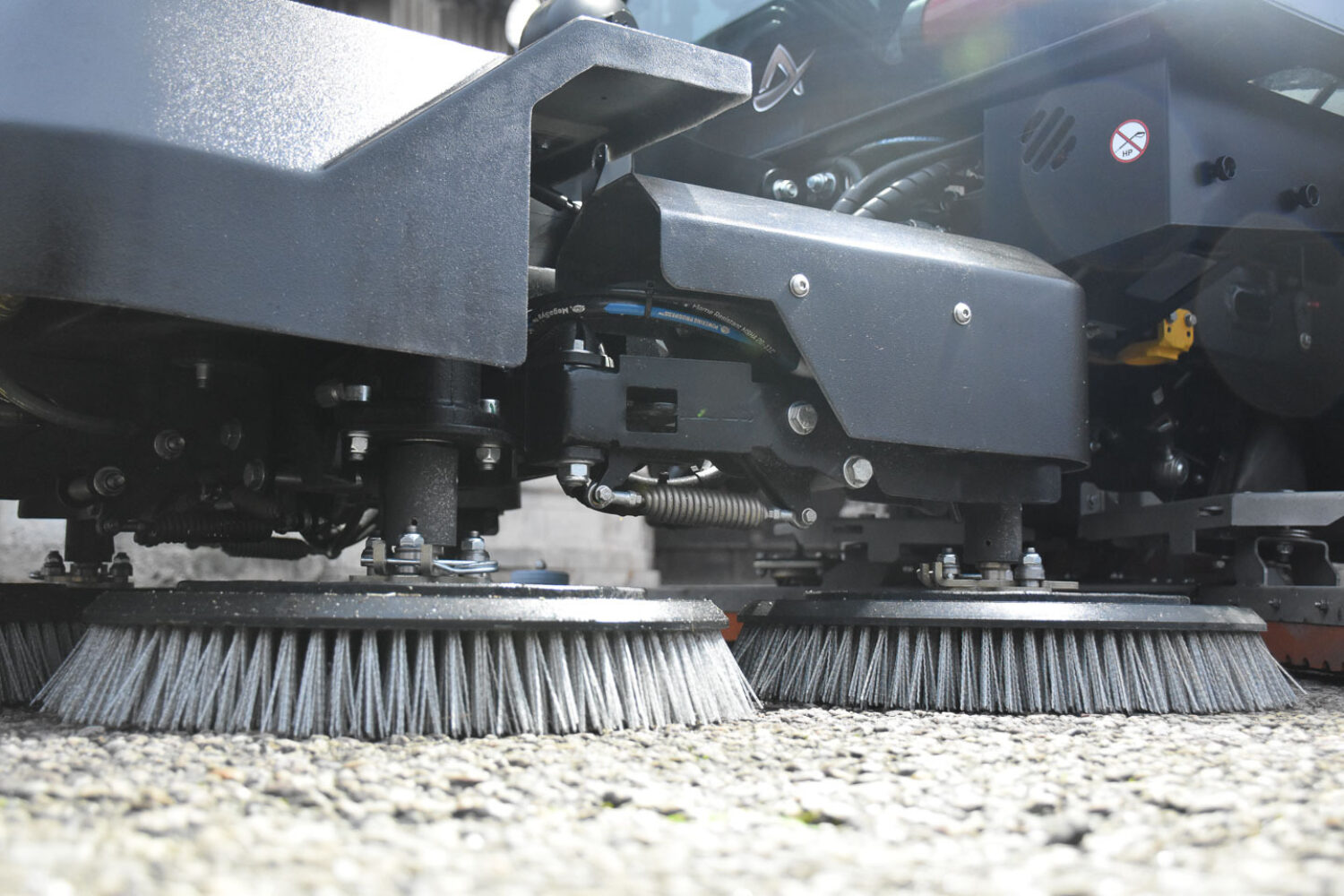

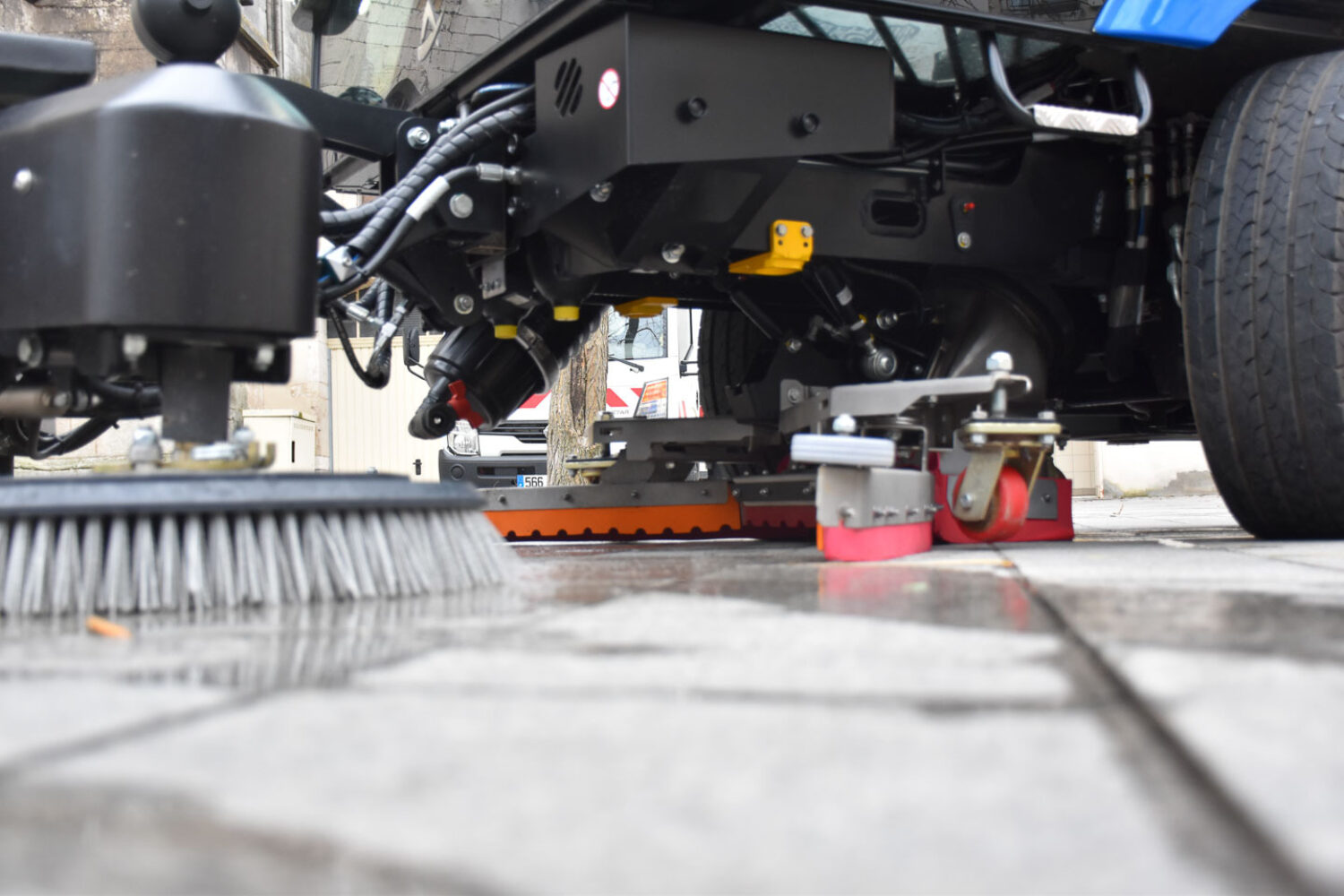

  • Brushing: The adjustment of ground pressure and brush rotation speed covers a working width of 1280 mm to 2100 mm, giving the R2s high efficiency in all working configurations.

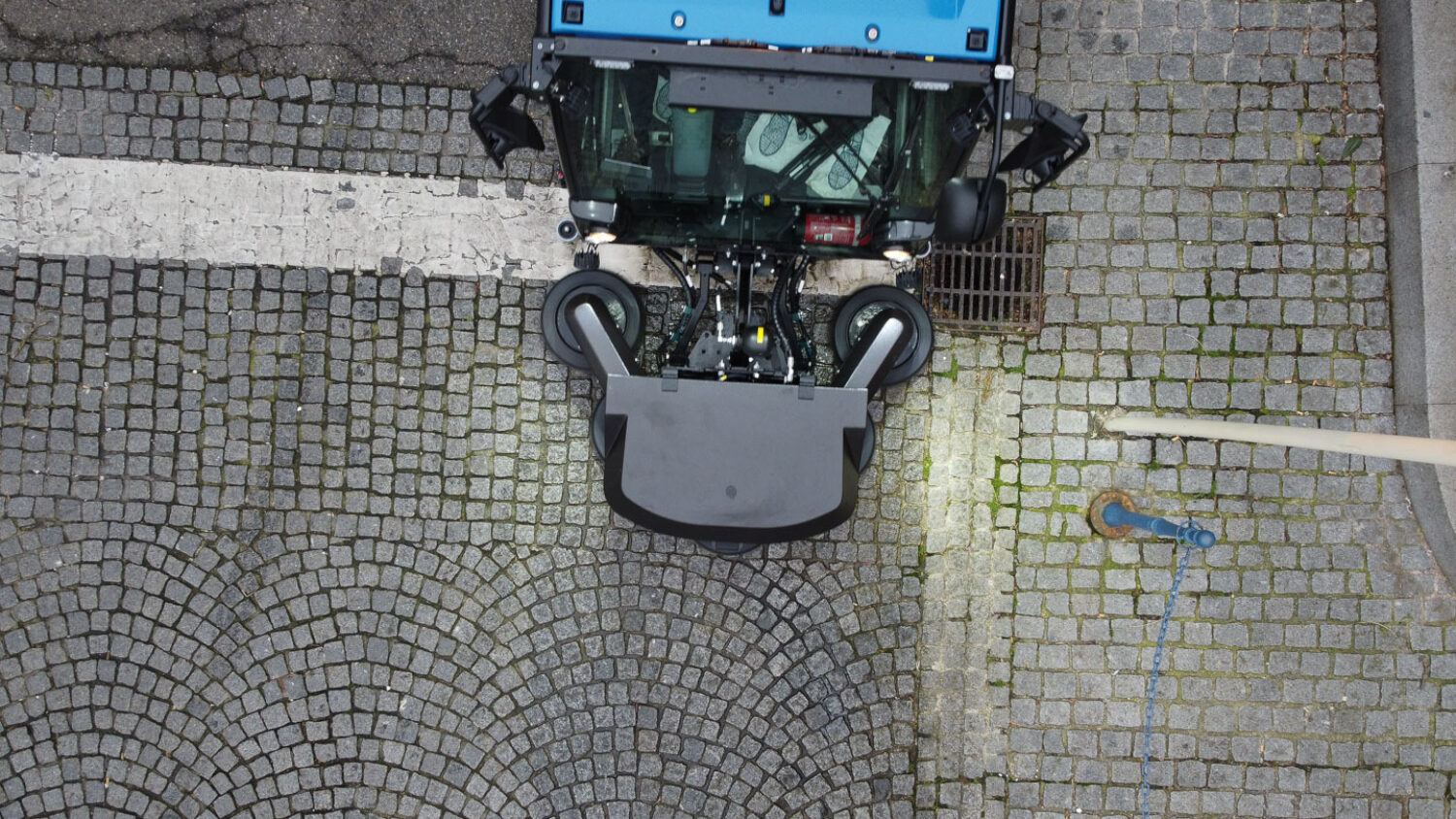

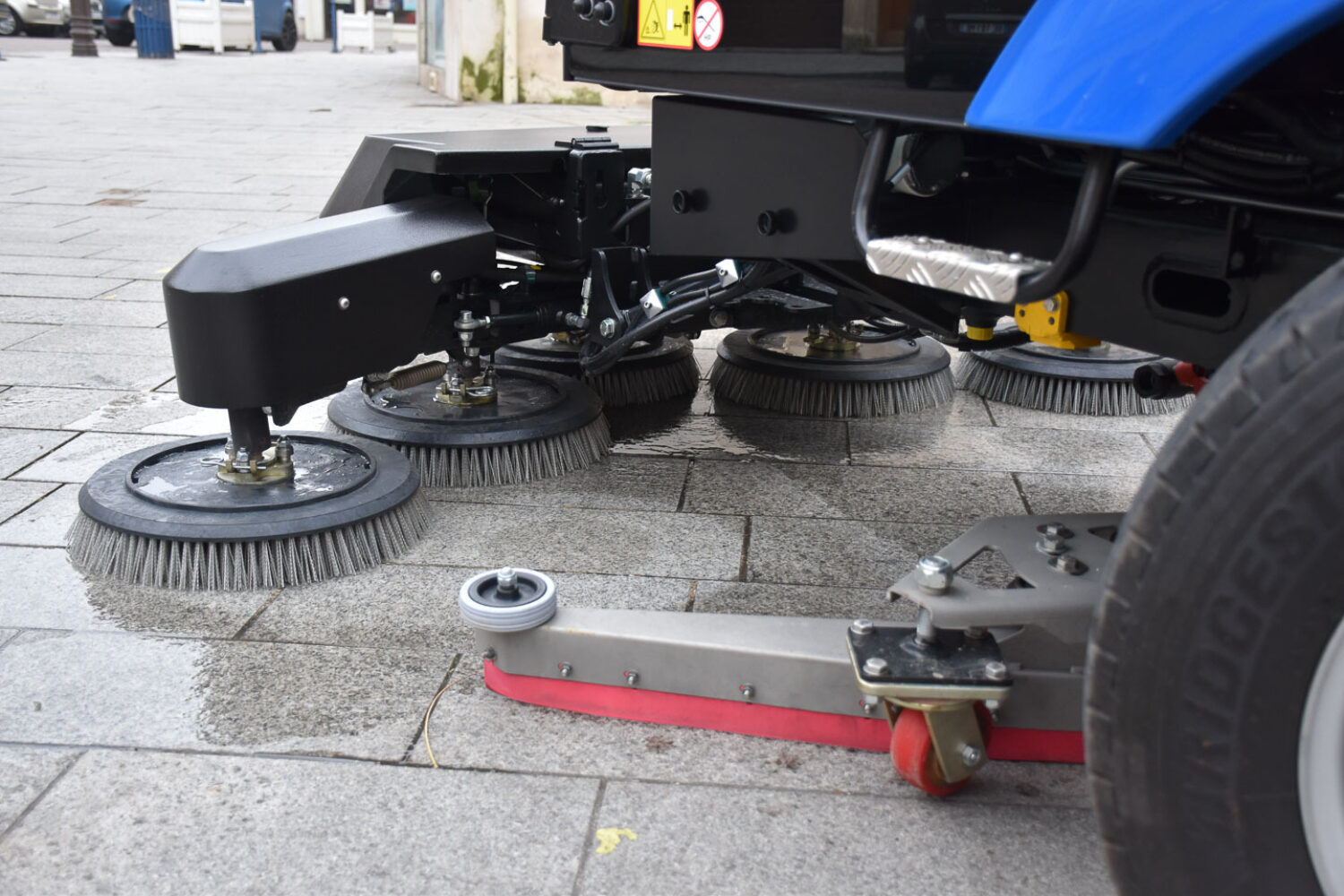

  • Suction System: With the scrapers, the sprinkler covers a ground span of 1600 mm, making it easier to collect the waste water. The suction mouth also has a trap for large waste, which, by combining the brushing and suction functions, allows the R2s to dispose of waste such as paper, cans, and glass bottles.
